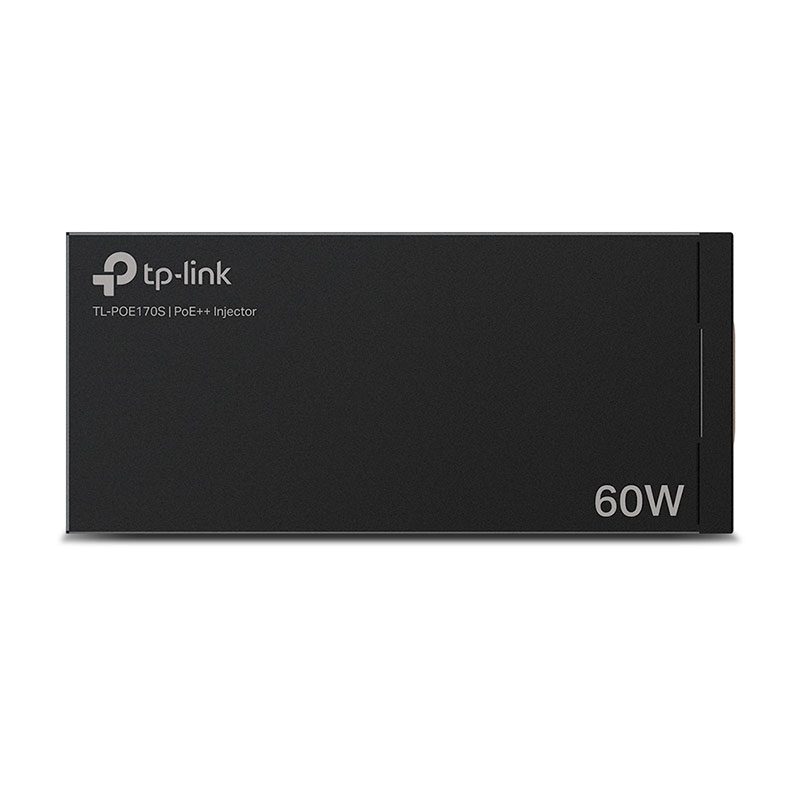

TL-POE170S
Neuf
Date de disponibilité:
L'injecteur PoE++ TL-POE170S de TP-Link est un dispositif d'alimentation par Ethernet de pointe, conçu pour simplifier l'extension de votre réseau en fournissant à la fois des données et de l'électricité via un seul câble Ethernet.
Cet injecteur PoE est idéal pour alimenter des appareils nécessitant une puissance élevée comme les caméras PTZ, des dispositifs d'éclairage LED, et bien plus, là où l'accès à une source d'alimentation directe est limité ou inexistant.
Ce produit robuste et fiable permet une installation flexible et une intégration aisée dans divers environnements grâce à son design adapté au montage mural ou sur bureau.
L'injecteur PoE++ TL-POE170S de TP-Link représente une solution efficace et économique pour étendre votre réseau, en fournissant à la fois puissance et connectivité avec une grande simplicité d'installation et une fiabilité à toute épreuve.
Que ce soit pour des applications professionnelles ou personnelles, cet injecteur PoE++ est l'outil idéal pour maximiser votre infrastructure réseau tout en minimisant les coûts et les complexités d'installation.
Marques | TP-LINK |
RESEAU | |
---|---|
Standards et Protocoles | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt* |
GÉNÉRAL | |
Certification | FCC, CE, RoHS |
Environnement | Operating Temperature: 0°C to 45°C Storage Temperature: -40°C to 70°C Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing |
Matériel | Metal Casing |
CONTENU DE LA BOITE | |

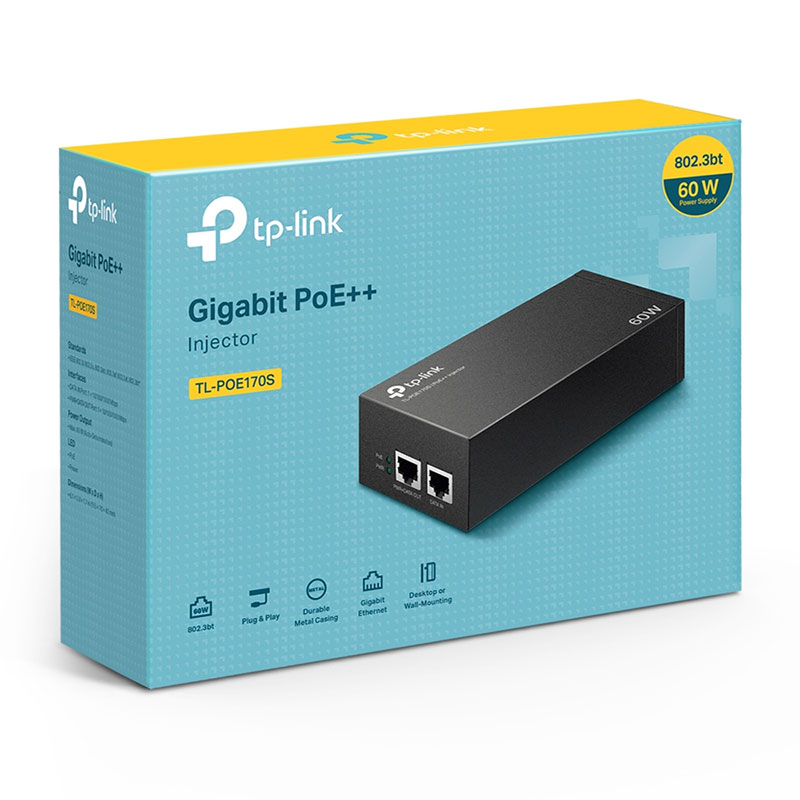

Contenu de la boite | PoE++ Injector TL-POE170S Installation Guide Power Cord RJ45 Cable |
CARACTERISTIQUES MATERIELLES | |
Interface réseau | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable (maximum 100 m) |
Ports | 1 10/100/1000Mbps RJ45 data-in port 1 10/100/1000Mbps RJ45 power+data-out port 1 AC socket |
Consommation | Input: 100-240 V, 50/60 Hz, 1.6A Output: Auto-determine the necessary power requirements (max. 60 W) |
Fonction de base | Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play |
Dimensions (LxPxH) | 155*70*42 mm |
